Item TIMBH839669

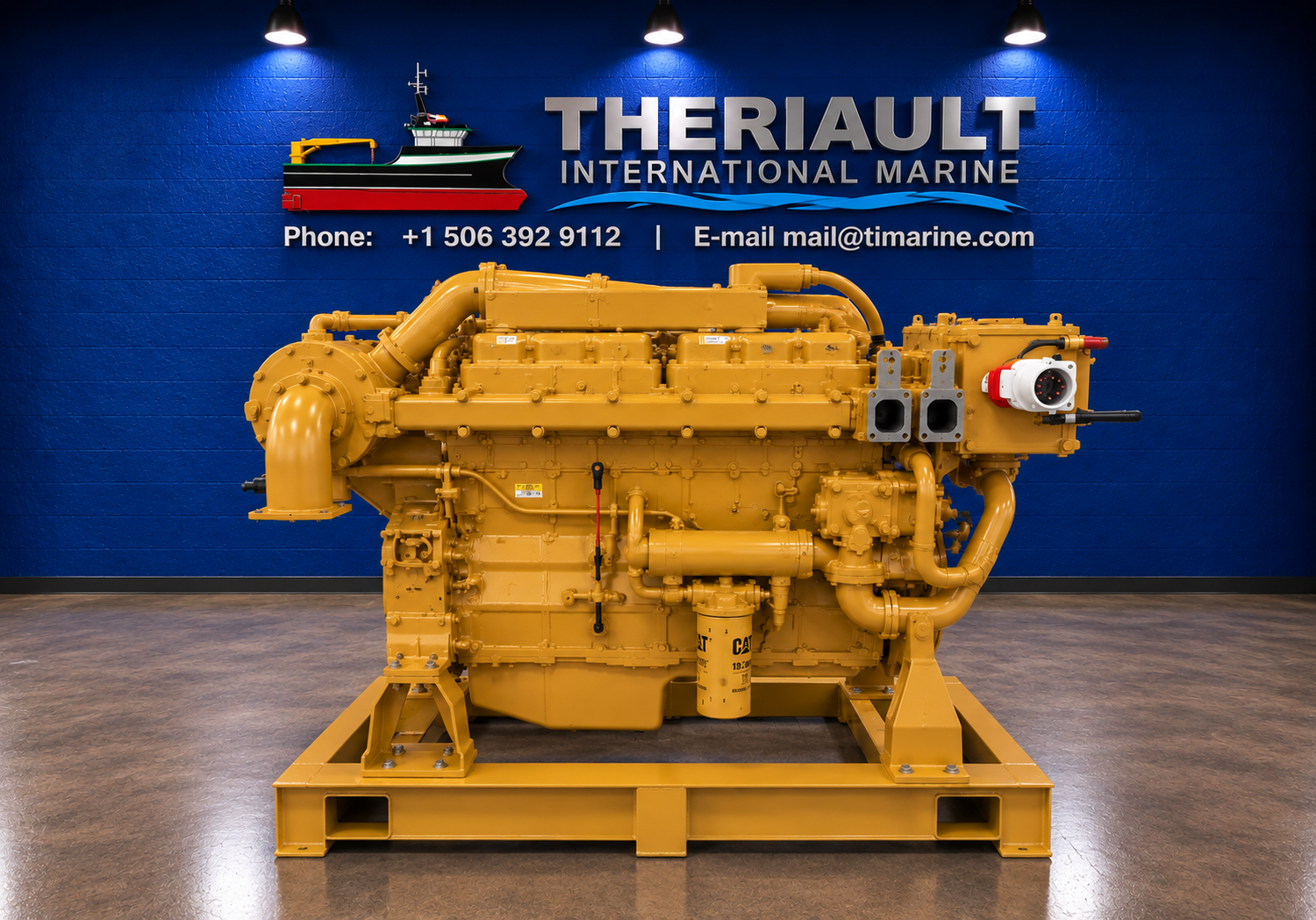

CATERPILLAR 3406 MARINE ENGINE – 400 HP @ 1,800 RPM – RECON – Item# TIMBH839669
- Engine Model:
- 3406 DITA
- Brand:
- Caterpillar
- RPM:
- 1800
- HP:
- 400
- Item #:
- TIMBH839669
Specifications
- Brand
- Caterpillar
- Model
- 3406 DITA
- Equipment Type
- Marine Diesel Engine
- Application
- Marine Propulsion
- Condition
- Reconditioned
- Running Hours
- 0 Hours Since Reconditioning
- Year
- 1998
- Rated Power
- 400 HP / 298 kW
- Rated Speed
- 1,800 RPM
- Serial Number Prefix
- 4TB
- Engine Configuration
- Inline 6-Cylinder
- Engine Cycle
- 4-Stroke Diesel
- Displacement
- 14.6 L / 893 cu. in.
- Bore
- 137.2 mm / 5.4 in.
- Stroke
- 165.1 mm / 6.5 in.
- Aspiration
- Turbocharged & Aftercooled
- Governor
- Mechanical
- Rotation
- Counterclockwise Viewed from Flywheel End
- Cooling
- System Keel Cooled
- Flywheel Housing
- SAE No. 1
- Quantity Available
- 2+
- Availability
- Ready to Ship
- Shipping
- Worldwide Shipping Available (CFR)
- Sale Status
- Subject to Prior Sale
Dimensions
- Approx. Overall Length
- 1,454 mm / 57.3 in.
- Approx. Overall Width
- 914 mm / 36.0 in.
- Approx. Overall Height
- 1,279 mm / 50.3 in.
- Approx. Dry Weight
- 1,325 kg / 2,921 lb
The Caterpillar 3406 is a proven commercial marine propulsion engine suitable for commercial fishing vessels, workboats, tugboats, passenger vessels and other commercial marine craft.
Rated at 400 HP / 298 kW @ 1,800 RPM, these reconditioned, zero-hour engines are well suited for vessel repowers, replacement-engine projects and commercial marine installations requiring dependable mechanical Caterpillar propulsion.
