Item TIMF839312

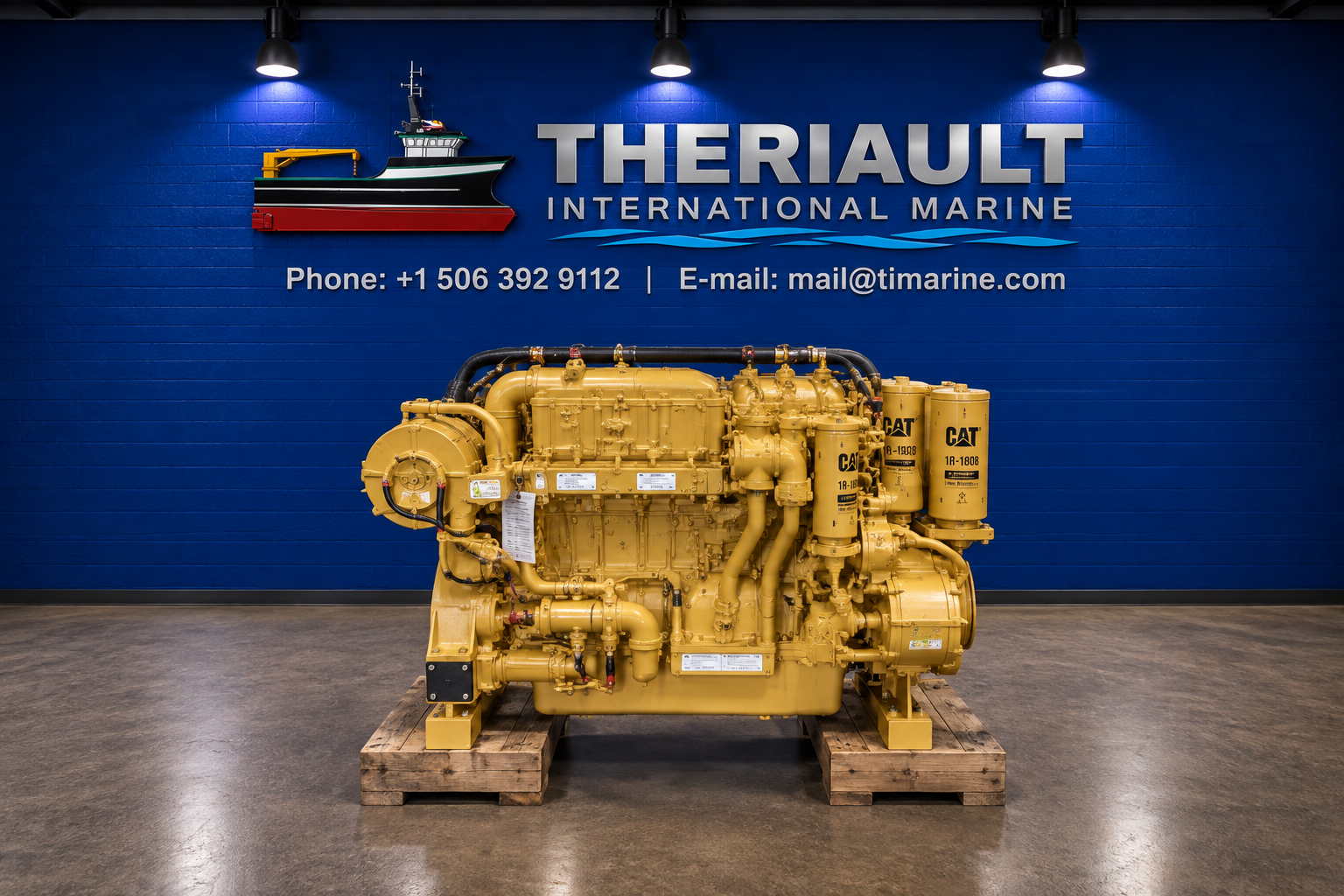

CATERPILLAR C18 MARINE PROPULSION ENGINES – 470 HP @ 1,800 RPM – NEW SURPLUS – TIMF839312
- Engine Model:
- C18 MP3G
- Brand:
- Caterpillar
- RPM:
- 1800
- HP:
- 470
- Item #:
- TIMF839312
Specifications
- Brand
- Caterpillar
- Model
- C18 MP3G
- Equipment Type
- Marine Diesel Engine
- Application
- Marine Propulsion
- Condition
- New Surplus
- Rated Power
- 470 BHP / 350 bkW
- Rated Speed
- 1,800 RPM
- Duty Rating
- A-Rating u2013 Unrestricted Continuous
- Market Segment
- Commercial Marine Propulsion
- Work Application
- Primary Drive
- Fuel
- Diesel
- Engine Configuration
- Inline 6-Cylinder
- Engine Cycle
- 4-Stroke Diesel
- Displacement
- 18.1 L / 1,106 cu. in.
- Bore
- 145 mm / 5.7 in.
- Stroke
- 183 mm / 7.2 in.
- Aspiration
- Turbocharged & Aftercooled
- Aftercooling
- SCAC u2013 Separate Circuit Aftercooler
- Cooling System Keel Cooled
- Keel Cooled
- Emissions
- EPA Tier 3 Certified
- Serial Number Prefix
- TNA
- Arrangement Number
- Please Contact
- Electronic Control
- ADEM 4 ECM
- Electrical System
- 24 Volt
- Charging Alternator
- 24 V / 70 Amp
- Starting System
- 24 V Electric Start
- Flywheel Housing
- SAE No. 0 & SAE No. 1
- Rotation
- SAE Standard Rotation
- Oil Pan
- Deep Sump
- Oil Change Interval
- 500 Hours
- Fuel Filters
- Duplex u2013 Front Service
- Primary Fuel System
- Fuel Filter / Water Separator
- Fuel Cooler
- Marine Plate-Type Fuel Cooler
- Oil Filters
- Duplex u2013 Front Service
- Crankcase Ventilation
- Closed Crankcase Ventilation (CCV)
- Exhaust Outlet
- 8 in. / 203.2 mm
- Engine Control Panel
- MECP I Marine Engine Control Panel
- Jacket Water Heater
- 120 V / 1,500 W
- Installation Configuration
- 4 x Twin Engine Installation
- Availability
- Ship Ready 1 week after Order
- Shipping
- Worldwide Shipping Available (CFR)
- Sale Status
- Subject to Prior Sale
Dimensions
- Approx. Length
- 1,838 mm / 72.4 in
- Approx. Width
- 1,138 mm / 44.8 in.
- Approx. Height
- 1,273 mm / 50.1 in.
- Approx. Dry Weight
- 1,717 kg / 3,785 lb
The Caterpillar C18 Marine Propulsion Engine is designed for demanding commercial marine service and is well suited for tugboats, commercial fishing vessels, dredges, workboats, passenger vessels, governmental vessels, inland-waterway vessels and ocean-going commercial craft. Those applications are specifically identified in the supplied documentation.
Rated at 470 HP / 350 kW @ 1,800 RPM with an Unrestricted Continuous A-Rating, EPA Tier 3 certification and keel-cooled SCAC configuration, these engines are particularly suitable for continuous-duty primary propulsion, vessel repowers, replacement-engine projects and new commercial marine installations.
