Item TIMCP839302

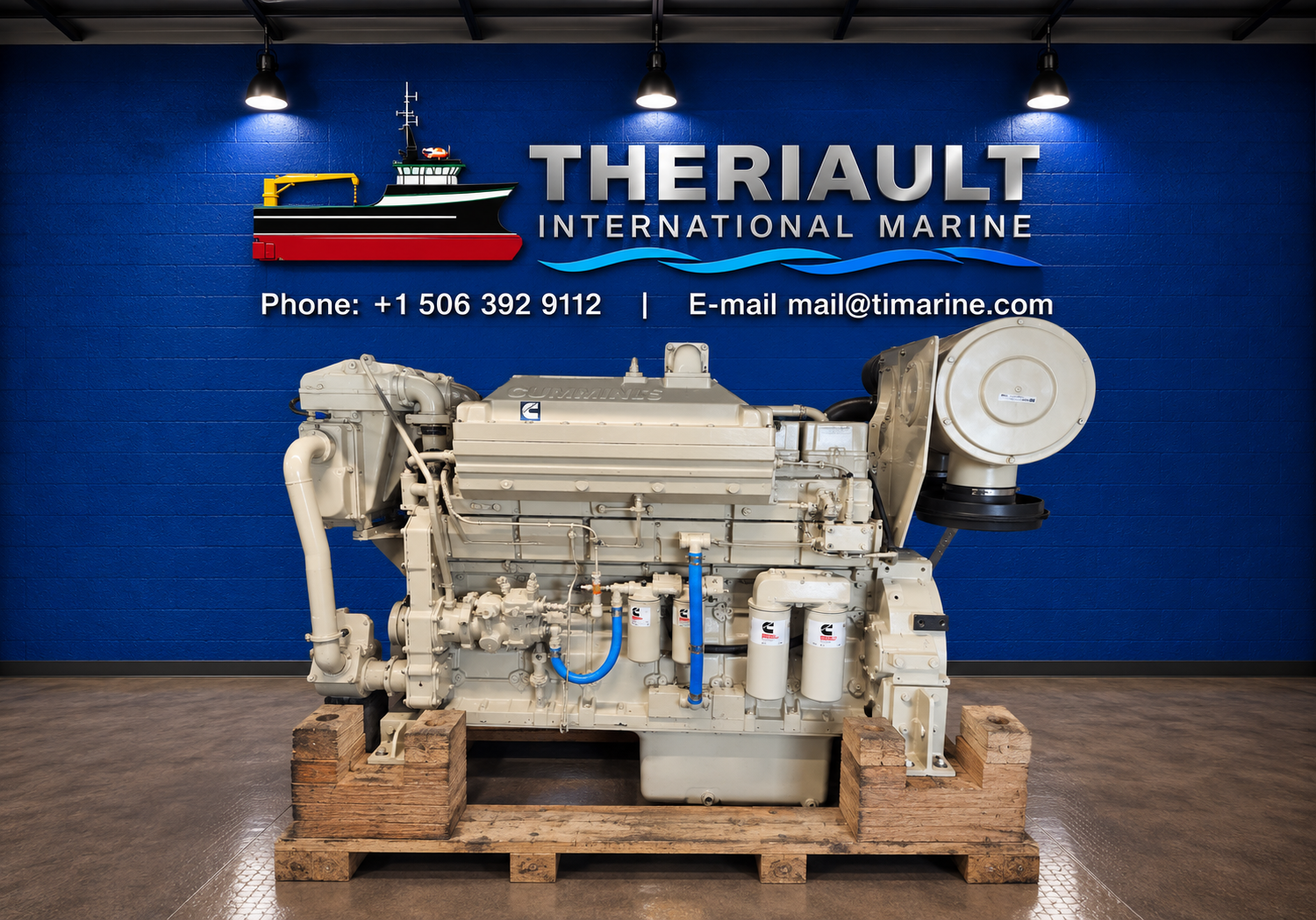

CUMMINS KTA19-M4 MARINE ENGINE – 700 HP @ 2,100 RPM – NEW SURPLUS – Item # TIMCP839302
Ready to Ship
- Engine Model:
- KTA19-M4
- Brand:
- Cummins
- RPM:
- 2100
- HP:
- 700
- Item #:
- TIMCP839302
Specifications
- Brand
- Cummins
- Model
- KTA19-M4
- Equipment Type
- Marine Engine
- Application
- Marine Propulsion
- Condition
- 0 Hour New Surplus
- Rated Power
- 700 HP / 522 kW
- Rated Speed
- 2,100 RPM
- Rating
- Heavy Duty
- Engine Configuration
- Inline 6-Cylinder
- Engine Cycle
- 4-Stroke Diesel
- Displacement
- 19 L / 1,150 cu. in.
- Bore
- 159 mm / 6.25 in.
- Stroke
- 159 mm / 6.25 in.
- Aspiration
- Turbocharged & Aftercooled
- Fuel System
- PT (Pressure-Time) Fuel System
- Rotation
- Counterclockwise Viewed from Flywheel End
- Emissions
- IMO Tier I
- Rated Fuel Consumption
- 136.5 L/hr / 36.0 US gal/hr
- ISO Average Fuel Consumption
- 91.7 L/hr / 24.3 US gal/hr
- Quantity Available
- 1 Unit
- Availability
- Ready to Ship
- Shipping
- Worldwide Shipping Available (CFR)
- Sale Status
- Subject to Prior Sale
Dimensions
- Approx. Length
- 1,877 mm / 74 in.
- Approx. Width
- 1,003 mm / 40 in.
- Approx. Height
- 1,905 mm / 75 in.
- Approx. Dry Weight
- 2,073 kg / 4,570 lb
The Cummins KTA19-M4 is a proven heavy-duty commercial marine propulsion engine well suited for fishing vessels, workboats, tugboats, crew boats, passenger vessels and other commercial craft requiring dependable high-output propulsion.
Rated at 700 HP @ 2,100 RPM, this 0-hour new-surplus engine combines the proven KTA19 platform with Cummins' mechanical PT fuel system, making it an excellent choice for vessel repowers, replacement-engine projects and new commercial marine installations.
